Powered Subwoofer
$28.00
Original: $79.99
-65%Fosi Audio TP-02 Subwoofer Amplifier—
$79.99
$28.00The Story
-
Adopt Texas Instruments TDA7498E chip, NE5532 op-amp. No pop, no audible noise, dead silent when nothing is playing through it;
-
Built-in low pass filter, 220W X 1(4 ohms, 20 Hz - 120Hz, 0.04% THD, 18db/octacce) for subwoofer, Small simple compact design but practical and powerful;
-
Advanced circuitry design, built-in speakers protection circuit, solid aluminum chassis for long time use;
-
The new version of TP02 has one more sub freq adjustment knob than the old version, and the others remain unchanged.
Quick tips:
1. Please plug the power cord into the amp THEN the wall, plug the audio cables into amp THEN switch on.
Some customers may see some slight sparks flying when they plug the power supply into the amplifier, because they use it in wrong way, you need to connect the amp to the power supply first, then plug the power supply into the 110v AC outlet, don't worry about the sparks, because this is class d amplifier, the capacitors need to charge when the power in, it's normal and safe.
Specifications
| Specifications | Details |
|---|---|
| Model | TP-02 |
| Output Power | 220W for Subwoofer |
| Terminating Impedance | 2Ω-8Ω |

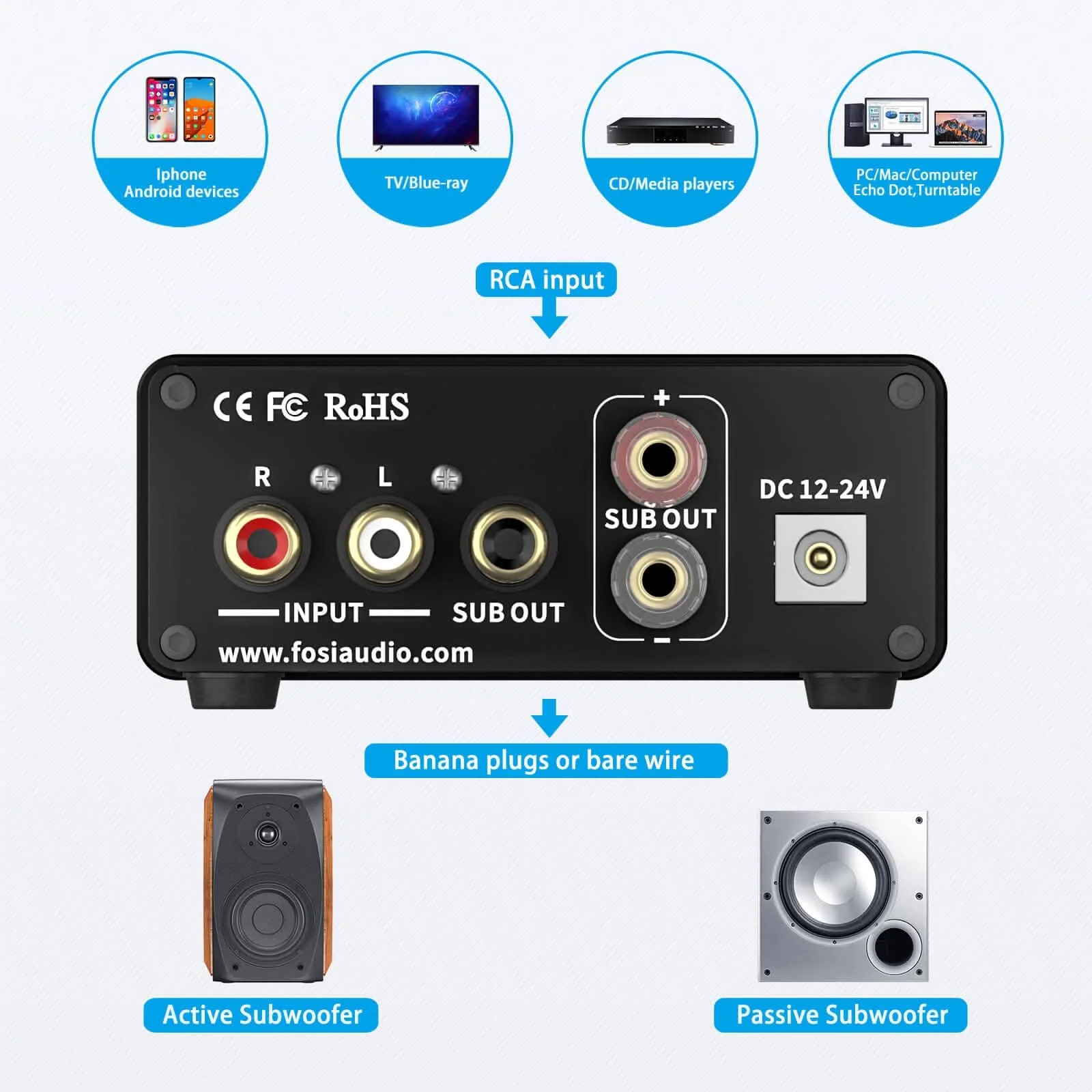

| Input Mode | RCA |
| Output Mode | Passive Subwoofer /
|
| Frequency Range | 20-200Hz |
| THD | ≤ 0.04% |
| SNR | ≥ 98dB |
| Input Sensitivity | ≤ 280mV |
| Device Dimension | 5.12 x 3.54 x 1.58 inches |
| DC Input Range | 12-24V |
| Power Supply | 24V 4.5A |

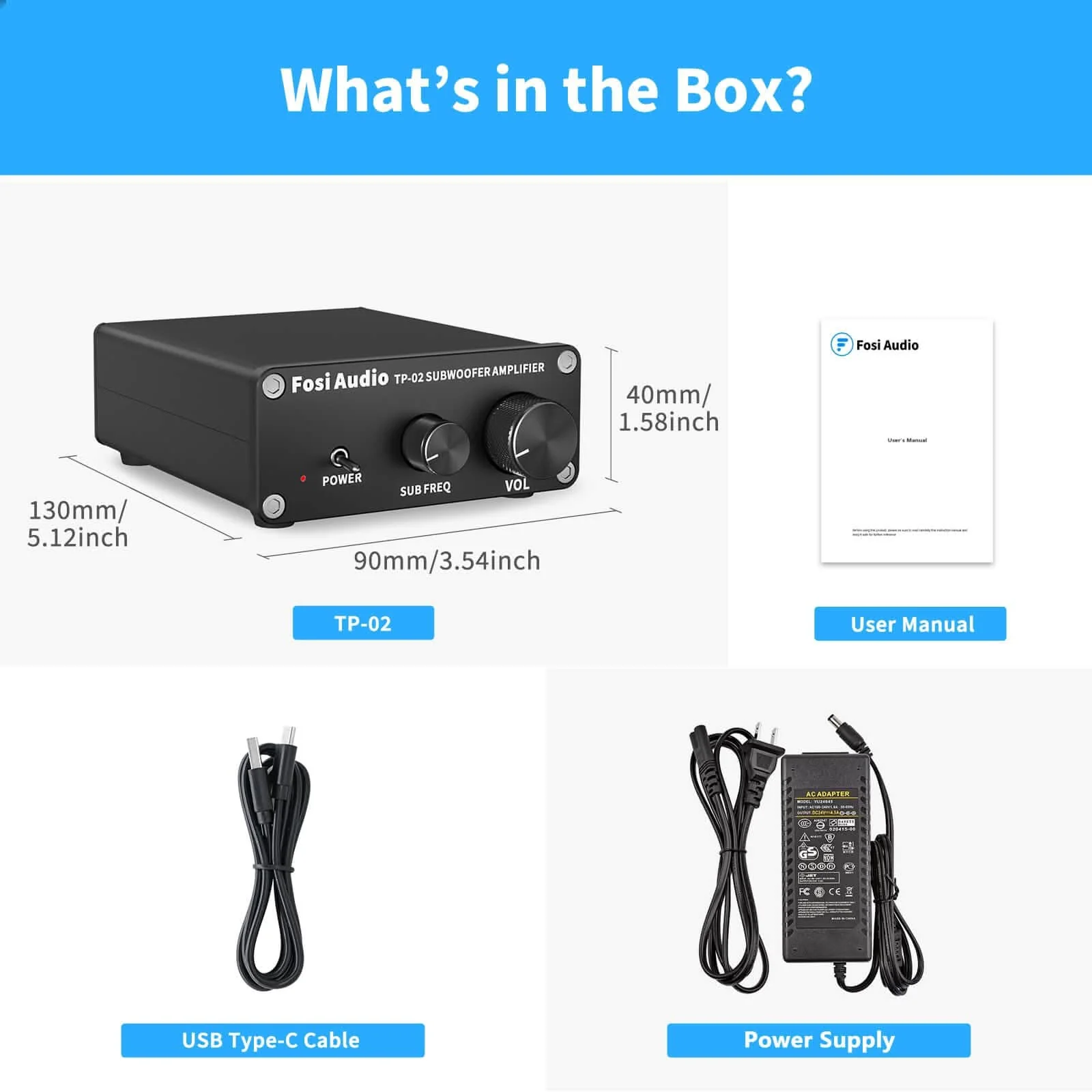

What‘s in the box？
| Item | Quantity |
|---|---|
| Fosi Audio TP-02 Amplifier | x 1 |
| AC Power Cord | x 1 |
| 24V 4.5A Power Adapter | x 1 |
| User’s Manual | x 1 |
Compare with similar items:
-
TP-01 Subwoofer Amplifier Receiver 100W
-
TP-03 Subwoofer Amplifier
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
-
Adopt Texas Instruments TDA7498E chip, NE5532 op-amp. No pop, no audible noise, dead silent when nothing is playing through it;
-
Built-in low pass filter, 220W X 1(4 ohms, 20 Hz - 120Hz, 0.04% THD, 18db/octacce) for subwoofer, Small simple compact design but practical and powerful;
-
Advanced circuitry design, built-in speakers protection circuit, solid aluminum chassis for long time use;
-
The new version of TP02 has one more sub freq adjustment knob than the old version, and the others remain unchanged.
Quick tips:
1. Please plug the power cord into the amp THEN the wall, plug the audio cables into amp THEN switch on.
Some customers may see some slight sparks flying when they plug the power supply into the amplifier, because they use it in wrong way, you need to connect the amp to the power supply first, then plug the power supply into the 110v AC outlet, don't worry about the sparks, because this is class d amplifier, the capacitors need to charge when the power in, it's normal and safe.
Specifications
| Specifications | Details |
|---|---|
| Model | TP-02 |
| Output Power | 220W for Subwoofer |
| Terminating Impedance | 2Ω-8Ω |
| Input Mode | RCA |
| Output Mode | Passive Subwoofer /
Powered Subwoofer |
| Frequency Range | 20-200Hz |
| THD | ≤ 0.04% |
| SNR | ≥ 98dB |
| Input Sensitivity | ≤ 280mV |
| Device Dimension | 5.12 x 3.54 x 1.58 inches |
| DC Input Range | 12-24V |
| Power Supply | 24V 4.5A |
What‘s in the box？
| Item | Quantity |
|---|---|
| Fosi Audio TP-02 Amplifier | x 1 |
| AC Power Cord | x 1 |
| 24V 4.5A Power Adapter | x 1 |
| User’s Manual | x 1 |
Compare with similar items:
-
TP-01 Subwoofer Amplifier Receiver 100W
-
TP-03 Subwoofer Amplifier
