Fosi Audio BOX X1 MM Turntable Phono Preamp

• Converts Phono Signals: Compact ultra-low noise phono turntable preamp that converts phono signals to line-level signals with Low-noise integrated circuits and high-quality components to remove low-frequency noise to ensure clear sound quality. Designed with a grounding post to protect your turntable.

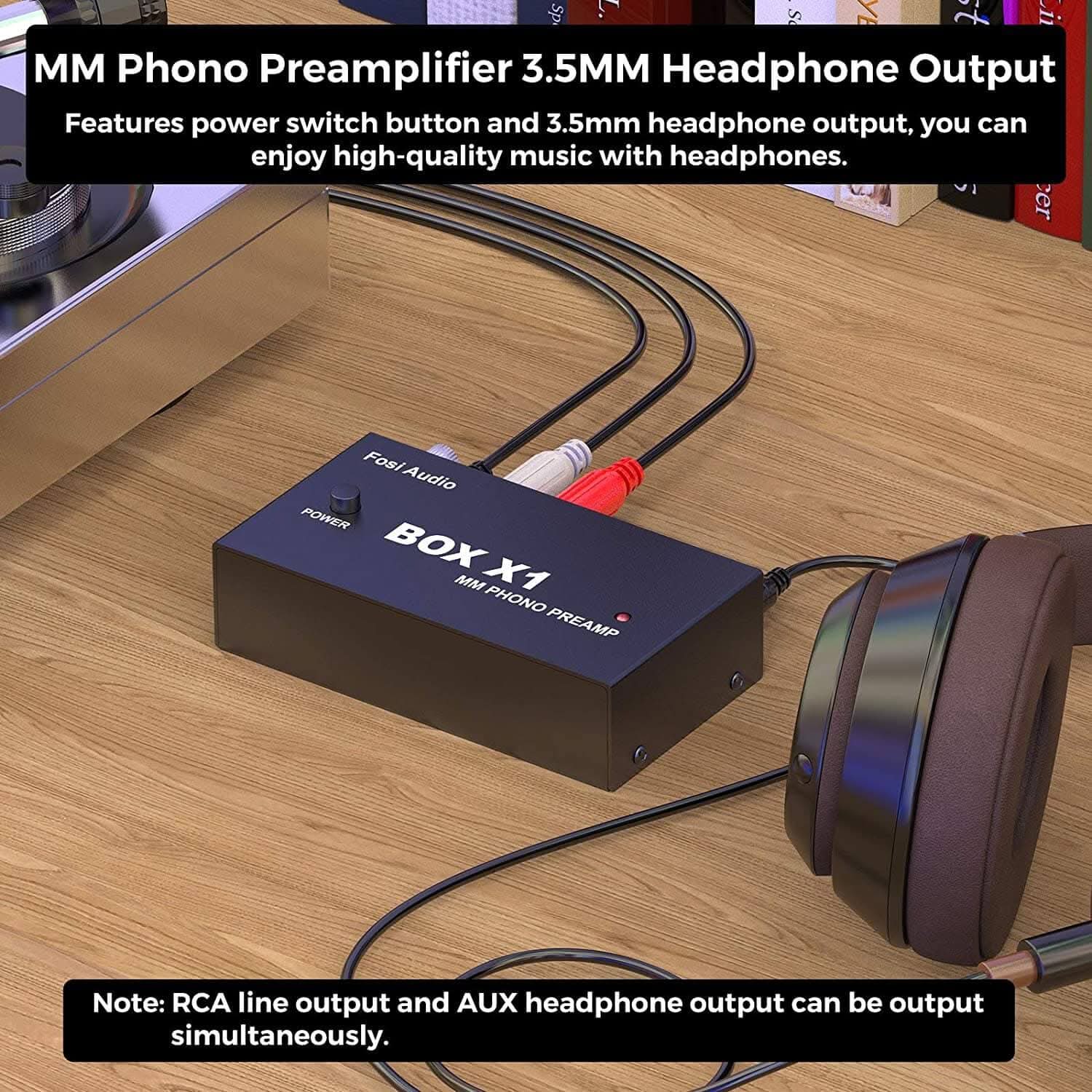

• Features Power Switch & 3.5MM Headphone Output: The unique power switch button design is very convenient to use. You can enjoy high-quality music with headphones through the 3.5 mm headphone output. Note: RCA line output and AUX headphone output can be output simultaneously.

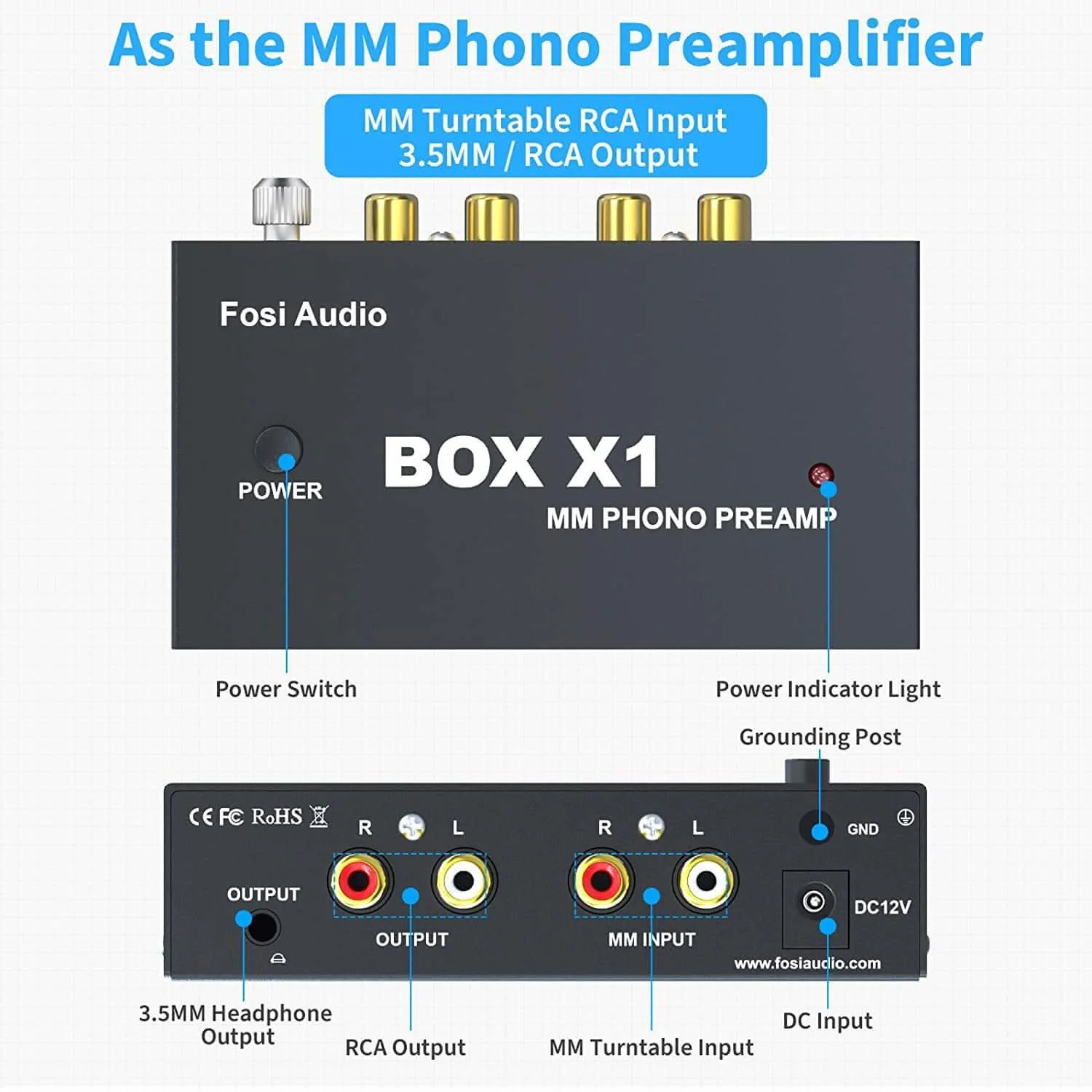

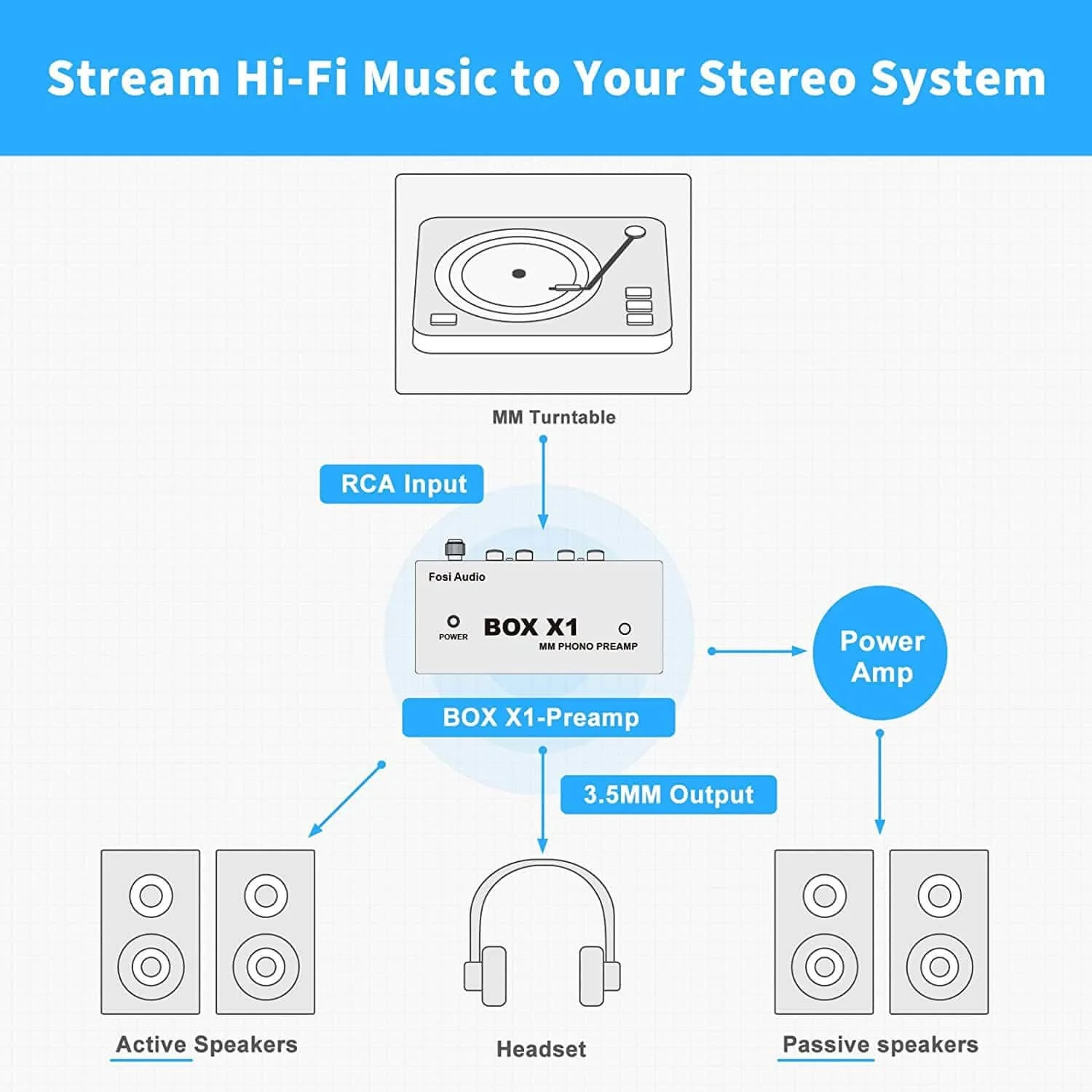

• 3.5MM / RCA Output: BOX X1 supports MM turntable input, 3.5MM headphone output, and RCA line output for powered speakers. Note: You can connect a power amplifier through the 3.5MM or RCA output, then connect the passive speakers.

• MM Phono Preamplifier & DC12V Power Adapter: Output Voltage Level: 2V max (P-P) at 10K Ohms, SNR: 70dB, THD: ≤0.08% @ 1kHz and 3mV, Frequency Response: Standard RIAA. Equipped with DC12V high-quality power supply.

• Easy quick setup for all MM (moving magnet) cartridges, Metal Aluminum case protects the unit from vibrations and electromagnetic interference.

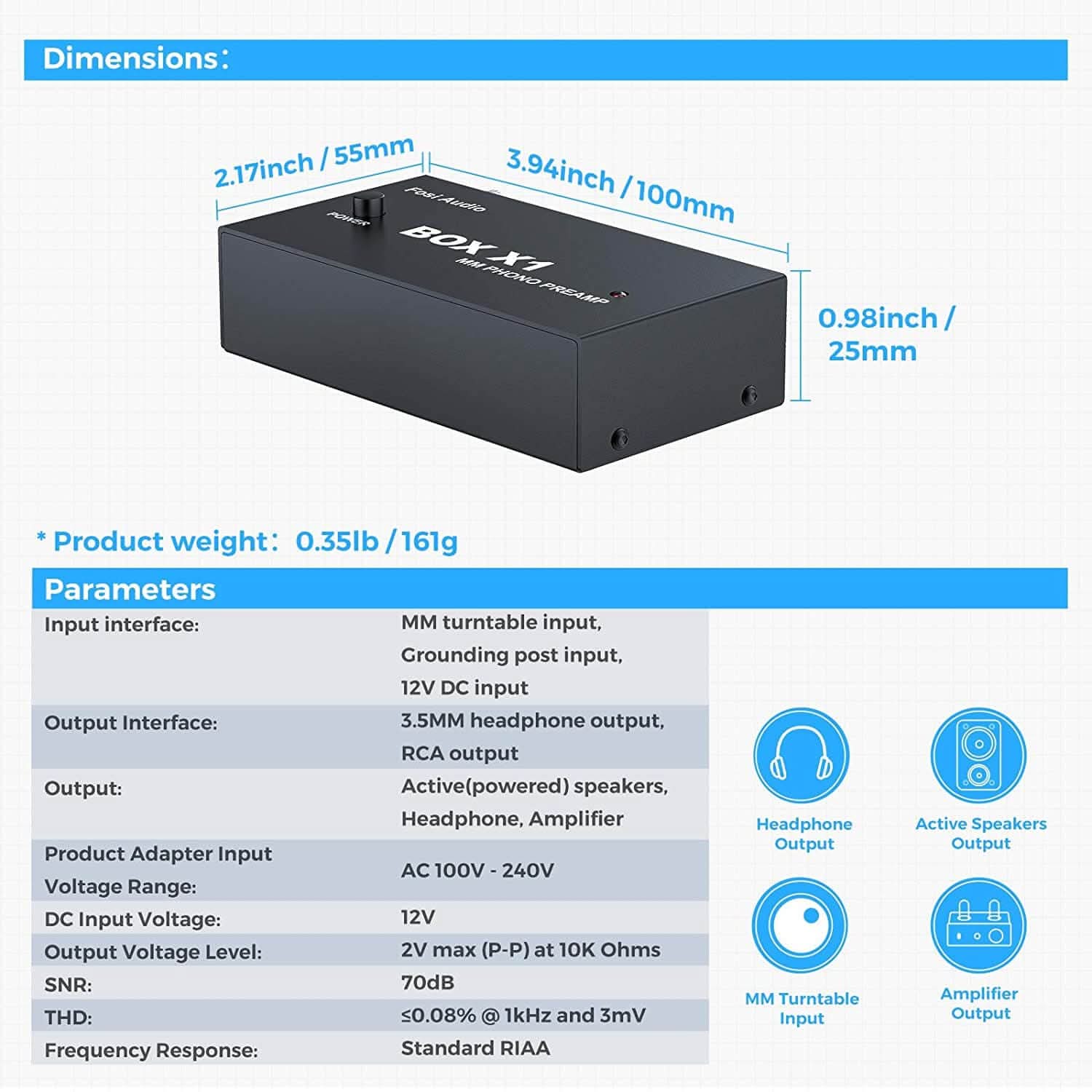

Specifications

Specifications	Details
Model	BOX X1
Output Mode	3.5MM headphone output + RCA output
Input Mode	MM turntable input, Grounding post input, 12V DC input
Output	Active(powered) speakers, Headphone, Amplifier
Frequency Response	Standard RIAA
THD	≤0.08% @ 1kHz and 3mV
SNR	70dB
Product Weight	0.35lb/161g
Device Dimension	3.94×0.98×2.17 inch
DC Input Range	12V
Input Voltage Range	AC 100V - 240V
Output Voltage Level	2V max (P-P) at 10K Ohms
Power Supply	12V 1.5A

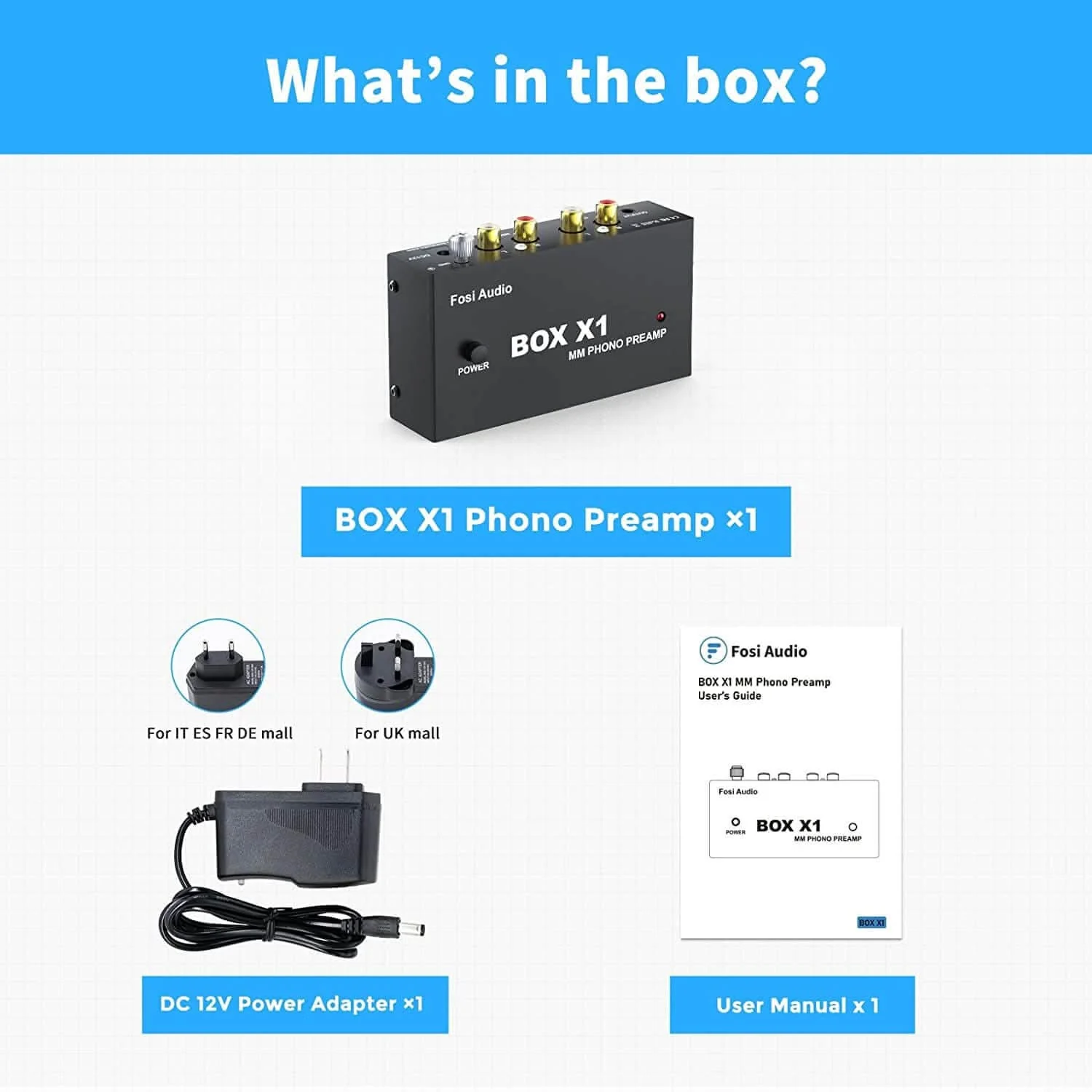

What's in the box？

Item	Quantity
Box X1 Phono Preamp	x 1
12V 1.5A Power Adapter	x 1
User’s Manual	x 1
